SERIES 100 / SADDLES FOR CABLES AND TUBES

Serie 100 Abracadeiras Cabos Tubos 400x400
Termoplastic

Thermoplastic

Cinza Preto E Creme

Grey Black Cream

Agrupavel

Stackable

Rtemperature

-15ºC +90ºC

For outdoor and indoor installations they serve a wide range of applications.

With insulating and pressure-applied properties, they have no influence on electromagnetic phenomena.

IluminacaoBar

STACKABLE SADDLES FOR VD, PG, AND HYDRAULIC CONDUITS AND CABLES

Abra 200 Conjunto Min 800x220
Conjunto4min 800x144
Agrupavel

Stackable Saddles

Aplicação Por Pressao

Pressure application

Lh

Halogen free

COMPATIBLE FIXATION WITH TYPE TUBES:

We provide a total of 11 references for different types of conduits

Icon VD

VD METRIC

12 | 16 | 20 | 40 | 50 | 63

Icon PG

PG

9 | 11 | 13,5 | 16 | 21 | 29 | 36 | 42 | 48

Icon Hidrau

HIDR.

11 | 13,5 | 16 | 19 | 23 | 36

Allows fixation with:

DOWEL AND SCREW

Ref 215 Min 171x400

Receives Ref: 215

Dowel 6 mm with screwing nail

DOWEL IN STEEL

Ref 903 Min 171x400

Receives Ref: 903

Steel Plug white zinc coated M6

M6 SCREWED PLUG

Ref216 E1561738618943 171x400

Receives Ref: 216

Plug screwed in Nilonfix M6

Premium JSL Saddle

Conjunto2 Min
Conjunto 400x400
Serie 100 Abracadeiras Cabos Tubos 400x400
  • Ref 100

    For VD Metric Conduit 12

  • Ref 101

    For Hydraulic Tube of 11

  • Ref 102

    For VD Metric Conduit 12 – PG Conduit 9 – Hydraulic Tube of 13,5

  • Ref 103

    PG Conduit 11 – Hydraulic Tube of 16

  • Ref 104

    For VD Metric Conduit 20 – PG Conduit 13,5 – Hydraulic Tube of 19

  • Ref 106

    PG Conduit 21 – Hydraulic Tube of 23

  • Ref 107

    For VD Metric Conduit 40 – PG Conduit 29 – Hydraulic Tube of 36

  • Ref 108

    For VD Metric Conduit 50 – PG Conduit 36

  • Ref 109

    For PG Conduit 42

  • Ref 110

    For VD Metric Conduit 63 – PG Conduit 48

FIXING ACCESSORIES COMPATIBLE WITH SERIES 200 SADDLES

215

6 mm plug with screwing nail

Ref 215 Min 171x400

903

Steel Plug white zinc coated M6

Ref 903 Min 171x400

216

Plug screwed in Nilonfix M6

Ref216 E1561738618943 171x400

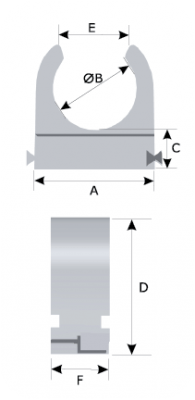

SERIE100MEDIDA 195x400

As a good member of any family, we are never just presenting you the range of clamps clusters for VD PG and Hydraulic tubes and cables integrated in a complete halogen free JSL solution.
