TRUNKING AND ACCESSORIES
FLUIDLINE TRUNKING FOR PIPES AND FLUIDS
Information
New line of trunking with an extremely pleasant design, designed especially for hiding pipes, whether gas, air conditioning, heating or water, called Fluidline.
These new PVC trunking systems are very easy to assemble since they can be done without the base, using your own clamps that connect to the trunking lid by pressure.
When concealed cable routing is not viable — in renovations, industrial retrofits, or commercial spaces — surface trunking is the technical solution of choice. JSL offers a complete surface cable management system, with ranges developed specifically for each type of application: electrical, data, fluid, and finishing.
INWAY Trunking – Electrical and Data Cable Management

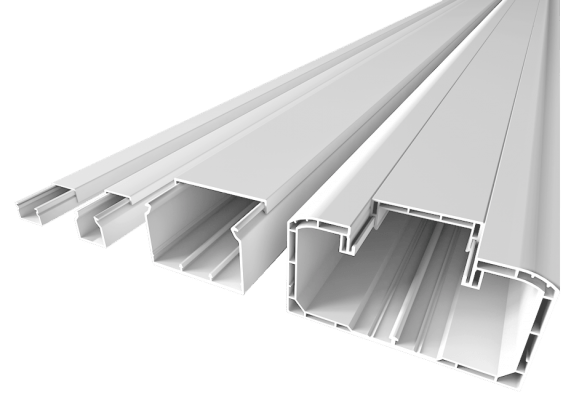

The INWAY range covers the needs of domestic, technical, and professional installations. The INWAY Trunking for Switchgear and Cables (mini-trunking and technical trunking) allows the installation of 45×45 modular switchgear (depending on model and accessory) and ensures the separation of power circuits (heavy current) and data circuits (light current) by means of internal dividers (depending on model). For projects with increased safety requirements, namely public buildings, hospitals, and critical infrastructure, the INWAY Halogen-Free Trunking eliminates the emission of toxic and corrosive gases in the event of fire, in compliance with IEC 60754 and EN 50267 standards.
ROUNDWAY Trunking – Rounded Corners
The ROUNDWAY range stands out for its rounded corner profile, representing a selection of references with this softer aesthetic specificity. Recommended for environments where the visual finish is a preference in edge finishing, without compromising the mechanical protection and electrical insulation characteristics required in a professional installation.

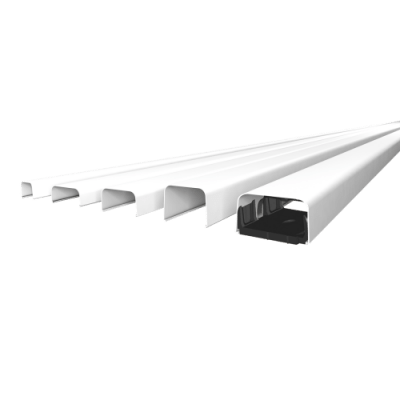

FLUIDLINE Trunking – Piping, Fluids, and Air Conditioning
The FLUIDLINE range was designed for routing HVAC piping, air conditioning, and other fluids. With profiles adapted to the specific dimensions and requirements of this application, it ensures an organized, aesthetically integrated, and easy-to-maintain installation.

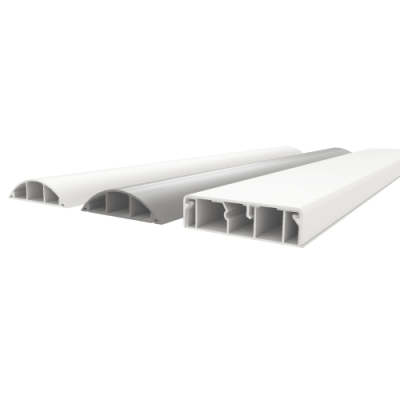

Floor Trunking and Skirting Trunking
For installations on the floor or around the perimeter of spaces, Floor and Skirting Trunking offers solutions with high mechanical resistance, suitable for contact with pedestrian traffic (floor trunking) and for discreet integration in office spaces, meeting rooms, and commercial areas.

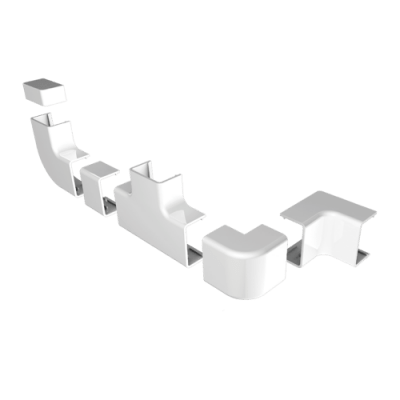

Accessories – The Detail that Defines the Professional Level
A surface cable management installation is only truly complete when the finishing accessories match the quality of the profiles. JSL offers the full range of accessories for technical trunking (internal angles, external angles, flat angles, T-branches, end caps, and couplers), accessories for switchgear installation, accessories for piping, fluid, and air conditioning trunking and accessories for floor and skirting trunking, ensuring the continuity of the protection rating and concealment, and a finish in compliance with electrical installation standards.
Explore the subcategories above to find the range best suited to your project.
