SUPER-T – The Ultimate Saddle!

null

Thermoplastic

null

Grey Black Cream

null

Stackable

null

-30ºC +90ºC

null

Install by Pressure

null

Halogen free

This new series features a modern design, engineered to substantially increase functionality and versatility, without forgetting compatibility with the previous series of saddles and accessories.

Premium JSL Saddle

SADDLES WITH MICRO ADJUSTMENT

null

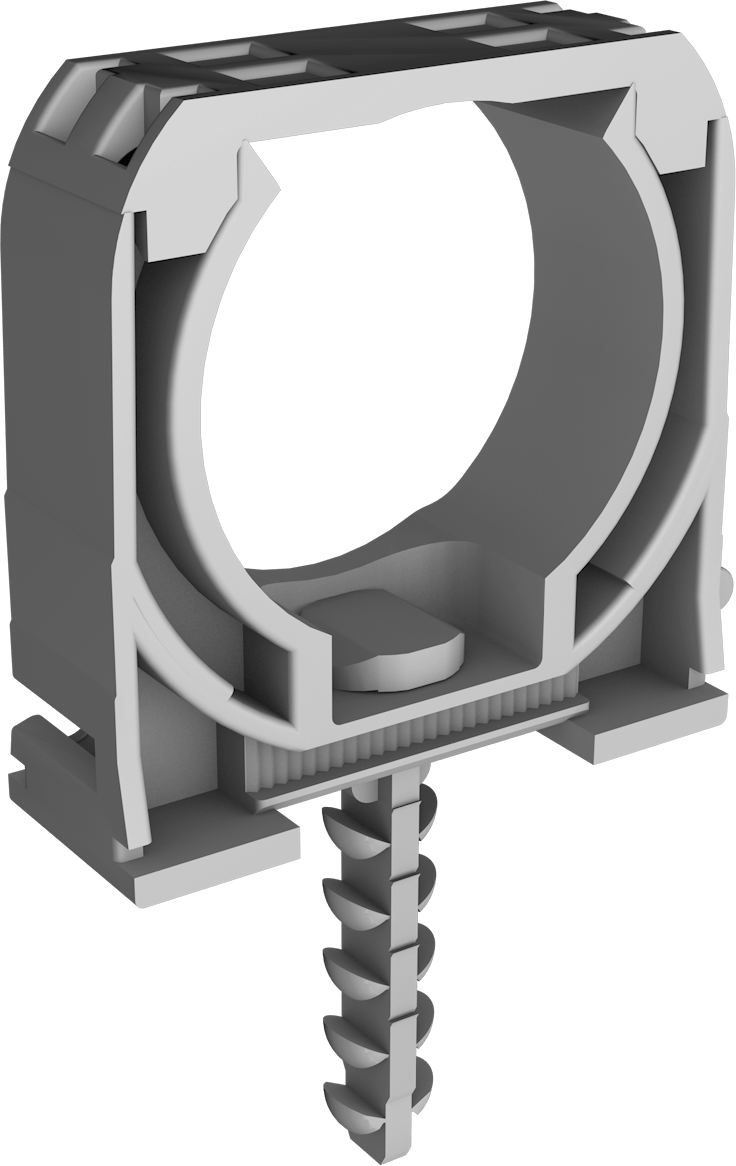

Super-T saddles have a built-in micro-adjustment slider that features 10 different micro-steps, allowing the installer to adjust the saddle for any deviations.

null

The fact that the saddle base is allowed to bend a few millimeters causes opposite forces in the joint areas, when the saddle is being installed/fixed, the flaps “bite” the saddle base even more, adding an extra amount of pressure to the saddle.

The PSTB-4, PSTB-7, ST-CLIP and ST-BASE are also fitted to receive cable ties with its built-in slot, more specifically the cable tie 467.

PSTB-4

PSTB-7

References available with 10 position Micro Adjustment

ST-CLIP

ST-BASE

SADDLES WITH FIXED CENTRAL ALIGNMENT

null

The Super-T saddles also make it possible to fasten at a single point with fixed central alignment. In the case of isolated plaster wall installations, the PST-7 is better and more suitable. With its longest measure, it can easily penetrate the three layers to obtain a permanent adhesion on the last layer.

PST-5 and PST-7 fast dowels are also suitable for the installation/fixing of the Boxline series in concrete. With this fast dowels it is possible to avoid the use of metal screws.

References available with Fixed Central Alignment

PST-5

PST-7

CLIP AND LOCK COVER

This clip and lock cover, can guarantee the non-removal of the conduits when the installation is reachable by hand.

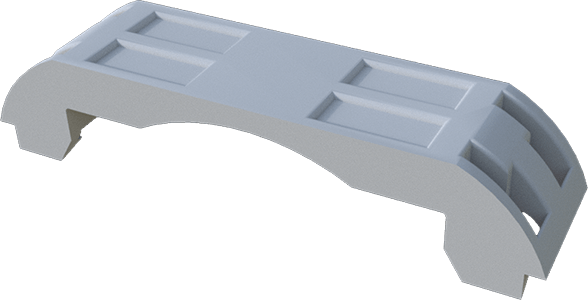

The covers have different sizes according to the saddle they are intended for, so for the ST-40, ST-32, ST-25, ST-20, ST-16, the corresponding covers have the following references, STC-40, STC-32, STC-25, STC-20 and STC-16.

When the pipes or cables are pulled, the sides of the saddle exert pressure on the cover by locking it and preventing its removal by holding the installation firmly in place.

STACKABLE SADDLES

The Super-T saddles can be grouped through the side inserts, allowing parallel installations

null

Retro-Compatibility

The Super-T Range are also retro stackable, meaning they can be paired with the previous JSL saddle series

ST-CLIP

The ST-Clip is the most cost-effective solution for the fixing cables or tubes onto metal plates, or cable trays. The clip can be used on metal plate profiles with measures ranging from 0.6 up to 1.2 mm.

The clip is also composed by a small triangular shaped retractable harpoon, that after entering the hole will snap back to its original position, securing the clip onto the cable tray.

Extra Clipping Grip

As already mentioned, and the similarity of the clamps, when installing the ST-CLIP, the base flexes a few millimeters, and since this curvature causes opposing forces in the clipping areas of the base, the tension created adds an extra amount of pressure to the clipping base reaffirming the robustness of the installation in general.

ST-BASE

JSL offers yet another solution for the fixing of cables or conduits using only a small thin plastic base. The ST Base is intended to be used with nail glue, and can be glued on to almost any surface allowing a very cost-effective versatile installation.

The ST-BASE has a built-in micro-adjustment slider that features 10 different micro-steps, allowing the installer to adjust the saddle for any deviations.

ST-BASE it’s installed by applying nail glue and letting it sit for at least 24 hours before securing any cable tie or any saddle on to it.

The small plastic base is made of small cylinder crevices to ensure that the nail glue has sufficient area adhesion to ensure a long-lasting grip onto any type of surface.

Allows fixation with:

The Super-T saddles are compatible with the references 903, BM6, 215, PST-5, PST-7, PSTB-4, PSTB7, ST-CLIP, ST-BASE

FITTING COMPATIBLE WITH TUBES TYPE

null

VD METRIC

16 | 20 | 25 | 32 | 40

null

PG

11 | 13,5 | 16 | 21 | 29

null

HIDRAULIC

13,5 | 16 | 19 | 21 | 23 | 29 | 36

Compatible with Galvanized Steel 2060-PF Trunking (DIN C11)

  • Ref ST-40

    For VD 40 Conduit – Hydraulic Tube 36

    Accepts STC-40 cover

  • Ref ST-32

    For VD 32 Conduit – Hydraulic Tube 29

    Accepts STC-32 cover

  • Ref ST-25

    For VD 25 Conduit – Hydraulic Tube 23

    Accepts STC-25 cover

  • Ref ST-20

    For VD 20 Conduit – Hydraulic Tube 19 – PG 13,5

    Accepts STC-20 cover

  • Ref ST-16

    For VD 16 Conduit – PG 11

    Accepts STC-16 cover

FIXING ACCESSORIES COMPATIBLE WITH SUPER T SADDLES

null

PST-5

Quick Dowels with 27mm (medium) for installation on walls (concrete or wood with 6mm drill bit).

Fixed Central Alignment

The PST-5 offers one central position when installing the saddles

null

PST-7

Quick Dowels with 42mm (long) for installation on walls (concrete or wood with 6mm drill bit).

Fixed Central Alignment

The PST-7 offers one central position when installing the saddles

null

PSTB-4

Quick Dowels with 27mm (medium) and Micro Adjustment for installation on walls (concrete or wood with 6mm drill bit).

Micro Adjustment


Micro Adjustment with 10 steps, 10 mm total amplitude

null

PSTB-7

Quick Dowels with 42mm (long) and Micro Adjustment for installation on walls (concrete or wood with 6mm drill bit).

Micro Adjustment


Micro Adjustment with 10 steps, 10 mm total amplitude

null

ST-CLIP

Clip saddle for fixing cables or tubes to metal plates or cable trays.

Micro Adjustment


Micro Adjustment with 10 steps, 10 mm total amplitude

null

ST-BASE

For installations using nail glue

Micro Adjustment


Micro Adjustment with 10 steps, 10 mm total amplitude

215

Dowel 6 mm with nail Type screw

Fixed Central Alignment

Dowel 6 mm with nail Type screw

903

M6 Dowel in galvanized, zinc coated white steel

Fixed Central Alignment

The 903 offers one central position when installing the saddles

BM6

Quick dowel in plastic M6

3 Points Alignment

The BM6 offers the possibility to adjust the saddle in 3 different positions in order to correct eventual deviations in the conduit installation
